Parts Parts - Task Master III - North American

NPT threads - 110V 60 Hz 1 phase - North American Program on Controllers

Click here for exploded view of Task Master III.  Click here for international parts listing. An overview of the parts for the Task Master III is provided in the pdf slide show.

Ref No. Part No. Description   Price
2   Injector Assembly w/ O-Rings
  507121  Brine injector assembly  (GREEN) Model 45, 50, 60 & 70

$  33.60

  507122  Brine injector assembly (ORANGE) Model 90, 100 & 120

$  33.60

  507125  Brine injector assembly (GOLD) Model 150 & 180

$  33.60

  507124 Substitute 507125 for 507124. 507124 is discontinued. (RED) $  33.60
  507127 Brine injector assembly (BROWN) Model 240, 300, 450, & 600   $  33.60
  507118 Plugged injector assembly for filters or external eductor   $  33.60

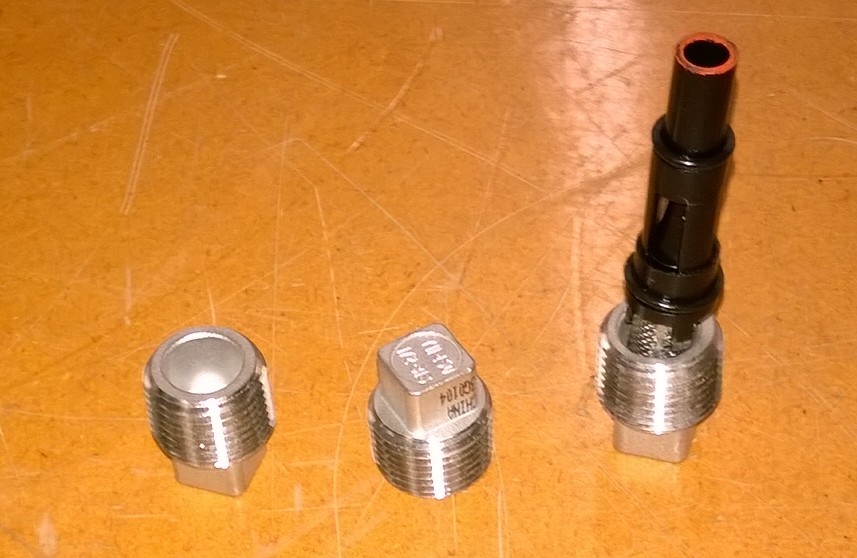

3 1263693 1/2" SS NPT Plug for injector port on Task Master III
Has cavity for screen.

$  39.20

4 400166-5 5/16-18 x 2 3/4" Cap screw (5 per pack)   $  28.00
5 400165 5/16-18 x 3/4" Cap screw (4 Req'd)   $    5.60
6   3/4" NPT BW flow control kit
  720402 RF/MF-50/70 BW flow control  (4 gpm) $ 196.00
  720404 RF/MF-100 BW flow control  $ 196.00
  720406 RF/MF-120 BW flow control  $ 196.00
  720408 RF/MF-150 BW flow control  $ 196.00
  720410 RF/MF-240 BW flow control  $ 196.00
  720412 RF/MF-300 BW flow control  $ 196.00
6   1 1/2" NPT BW flow control kit
  720414 35 GPM BW flow control  $ 224.00
  720415 40 BW flow control  $ 224.00
5,9,10,11,12,14 514003 1 1/2" Piston Kit (316SS)
NOTE:  Piston seals are not replaceable on this model.
If seals are damaged, please use Part No. 514003
to replace entire piston assembly.

$ 364.00

7,8,10,11,13,34,37,38 514010 Gasket/O-Ring Kit - Top Mount (RF) $   95.20
7,8,10,11,13,34 514011 Gasket/O-Ring - Kit Side Mount (MF) $   95.20
14,15,16 507241 Drive link assy

$   53.76

20,26,27 507254 Drive motor assembly

$ 224.00

29,30 507501 Relay/Power circuit board assembly $ 461.44
29,44 507502 Twin circuit board assembly $ 402.08
34 thru 39 720215 Top mount tank adapter kit (Allen Wrench not included) $ 252.00
34,39,40 720216 Side mount tank adapter kit (Allen Wrench not included) $ 280.00
31 & 32 ERC control assembly
  707201-t ERCt control assembly (Softener Timed)   $ 504.00
  707201-d ERCd control assembly (Softener Demand)   $ 560.00
  707201-f ERCf control assembly (Filter Timed)   $ 504.00

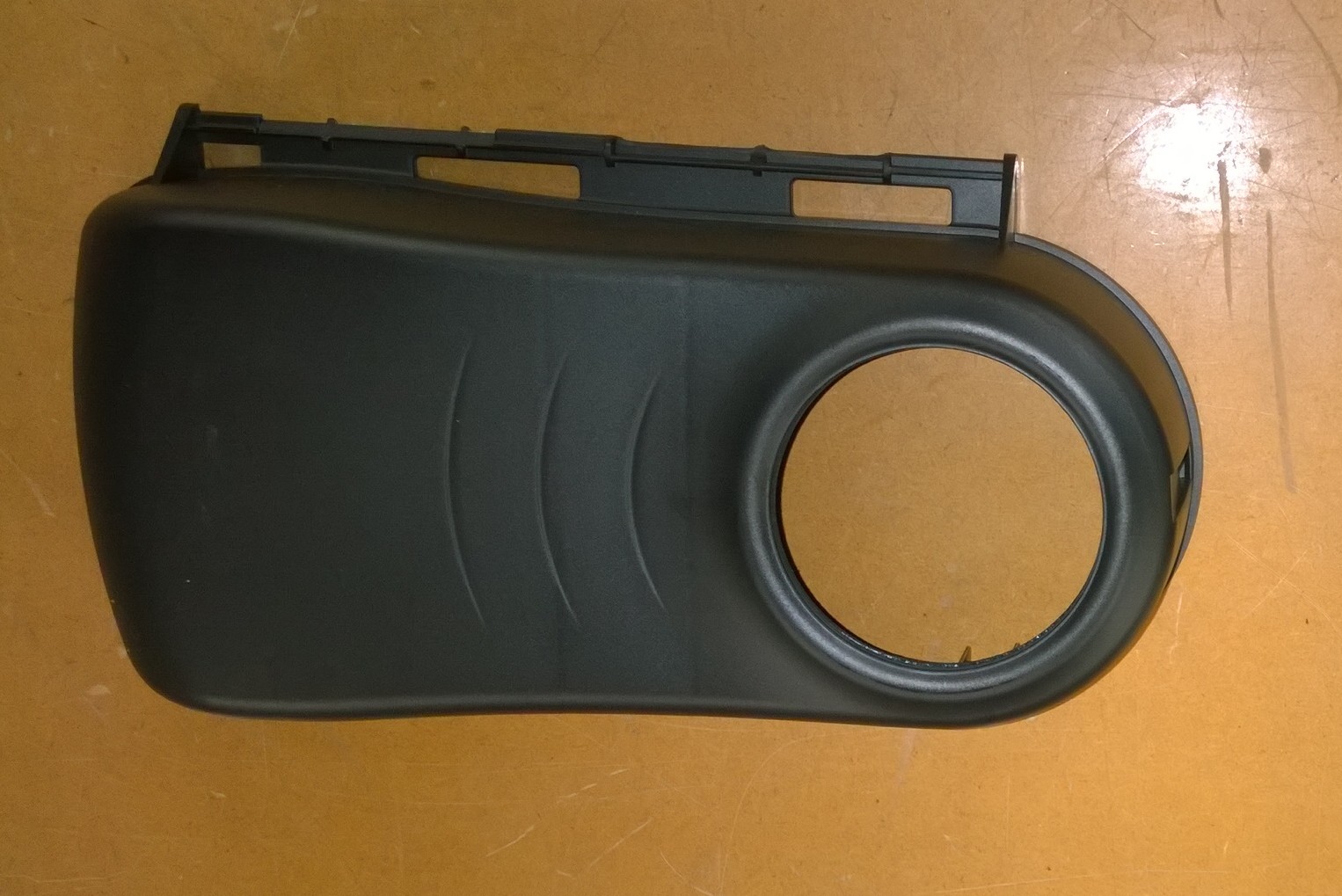

33 300831 NEMA 4 Cover with gasket

$ 280.00

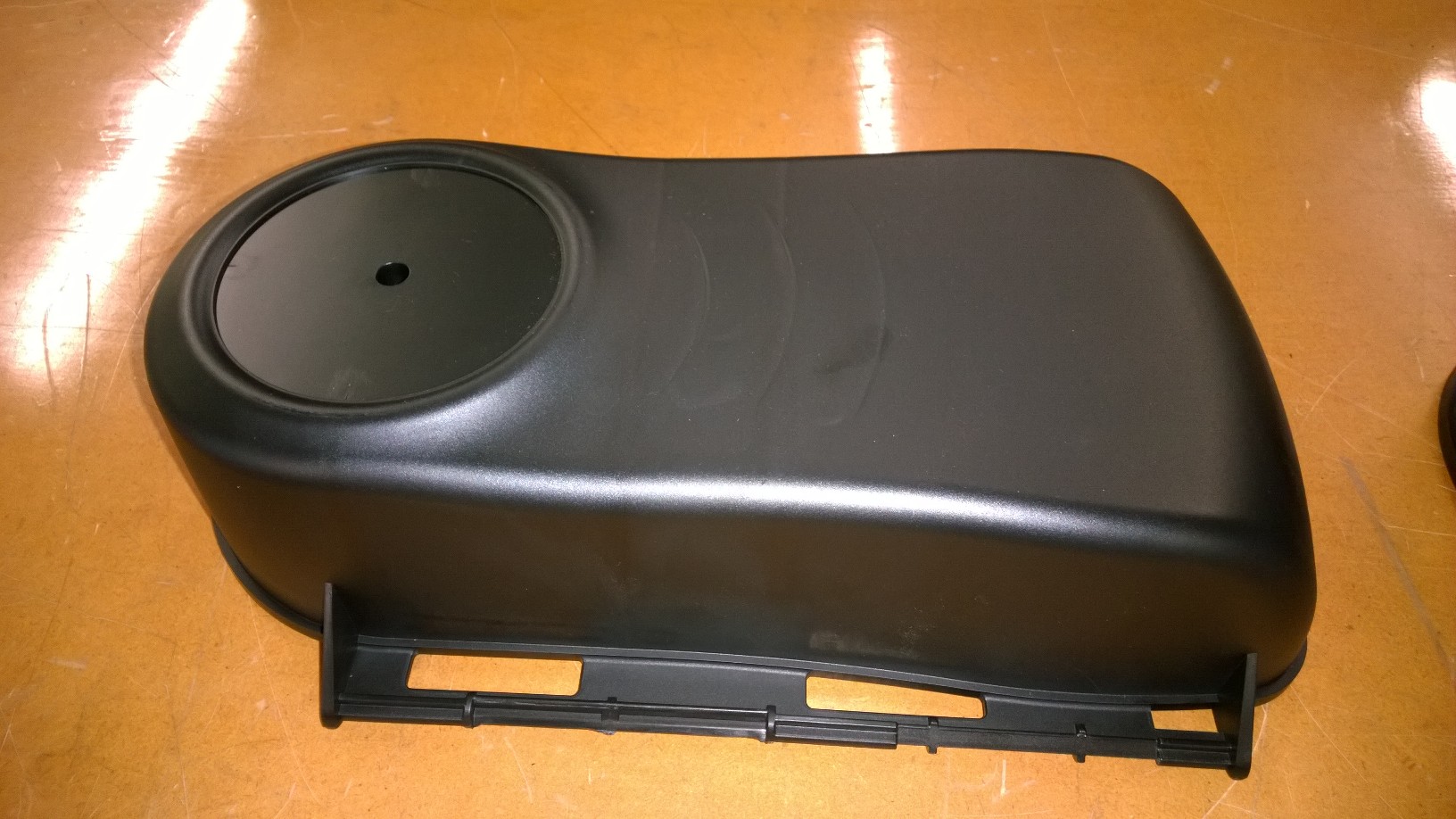

42 300832 NEMA 4 Cover with gasket, NO ERC (Twin or secondary)

$ 252.00

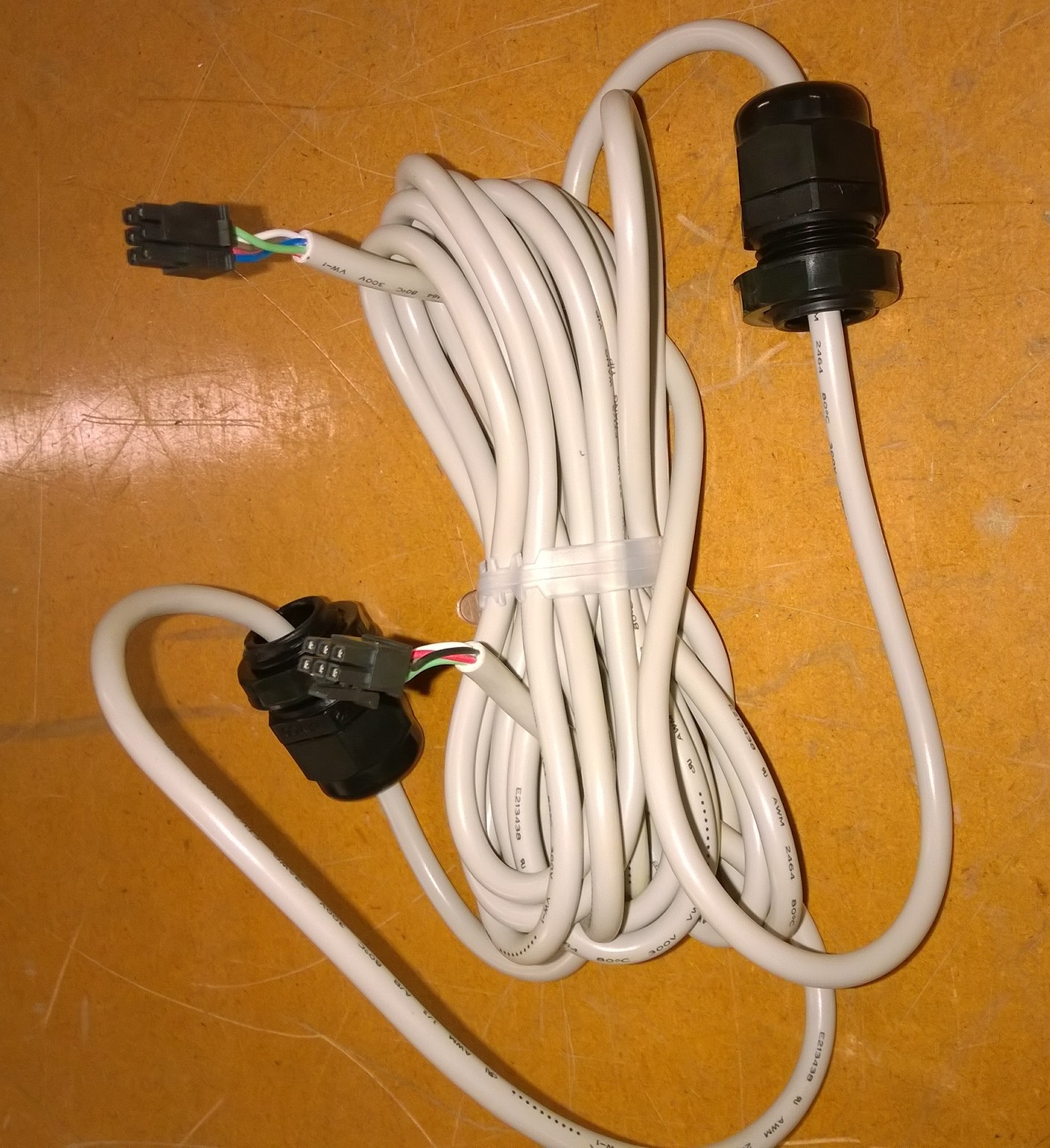

49 1264581 Interconnecting cable

$   39.20

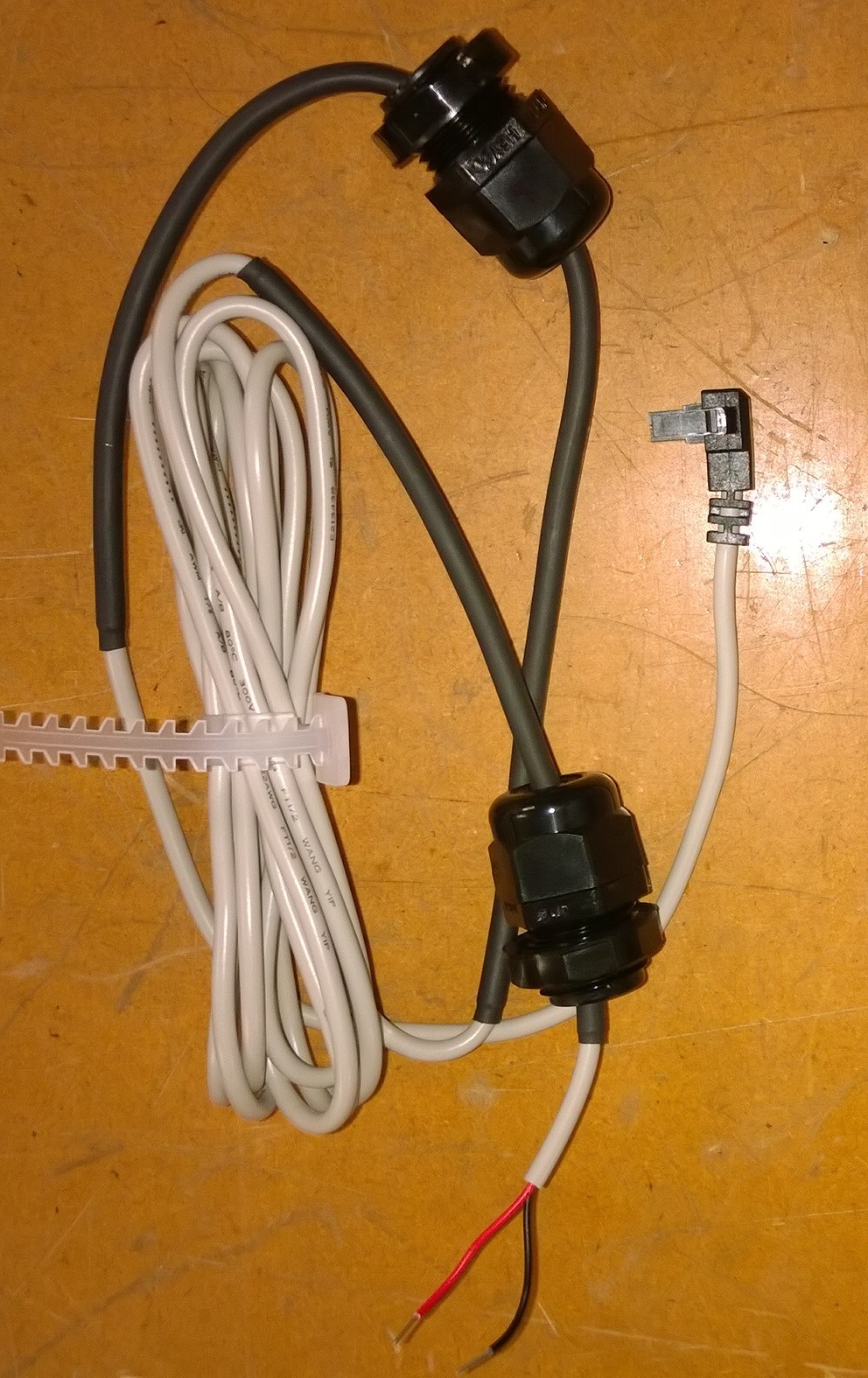

  1264597 Remote Regen Cable

$   39.20

Prices subject to change without notice.
